| Brand Name: | WERNA |
| Model Number: | WR184EC |
| MOQ: | 5 PCs |
| Prijs: | negotiable |
| Packaging Details: | Triplex |
| Payment Terms: | T/T |

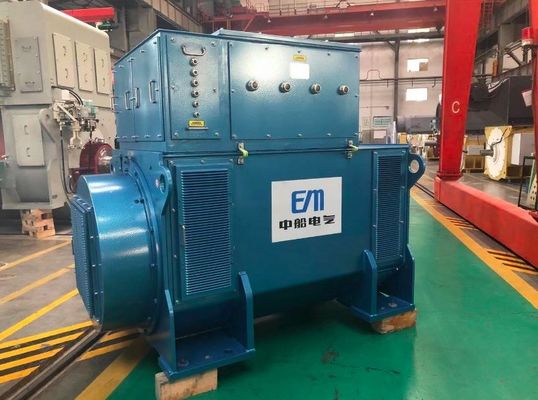

De reeksgenerators met hoog voltage van 1500RPM 10.5kV TFC4, AC diesel generator In drie stadia
1, Fabrikant:
Van de de Elektromachineswetenschap & Technologie van CSIC Co., Ltd Outputtype: AC Fase Diesel Generators In drie stadia & 3
Nominale spanning: 10500V windende Hoogte: 5 spanning Hoogte
Opwinding: Brushless, Self-excited, Synchro Geschatte Stroom vanaf Voltage:
2, Specificaties:
| Model | TFC4 |
| fabrikant | CSIEM |
| Outputtype | AC diesel generator In drie stadia |
| Terminal | Draad vier |
| Nominale spanning | 10.5kV |
| Frequentie | 50HZ |
| Snelheid | 1500RPM |
| Windende Hoogte | 5 / hoogte 6 |
| Opwinding | Brushless, self-excited, synchroon |
| Isolatieklasse | H |
3, Technische gegevens
|
Type |
3Phase, 50Hz, 1500rpm |
Schachtlengte |
Koper totaal gewicht |
Kernlengte |
|
| 10.5kV | |||||
| kVA | kW | mm | kg | mm | |
| TFC4 502-4 | 625 | 500 | 2143 | 237 | 420 |
| TFC4 502-4 | 750 | 600 | 2143 | 237 | 420 |
| TFC4 504-4 | 875 | 700 | 2143 | 262 | 470 |
| TFC4 506-4 | 1000 | 800 | 2288 | 313 | 540 |
| TFC4 508-4 | 1125 | 900 | 2288 | 360 | 590 |
| TFC4 508-4 | 1250 | 1000 | 2288 | 360 | 590 |
| TFC4 562-4 | 1500 | 1200 | 2193 | 382 | 560 |
| TFC4 564-4 | 1750 | 1400 | 2193 | 388 | 600 |
| TFC4 566-4 | 2000 | 1600 | 2193 | 465 | 660 |
| TFC4 568-4 | 2250 | 1800 | 2193 | 471 | 730 |
| TFC4 632-4 | 2500 | 2000 | 2400 | 548 | 620 |
| TFC4 634-4 | 2750 | 2200 | 2400 | 534 | 690 |
| TFC4 636-4 | 3000 | 2400 | 2550 | 567 | 750 |
|
